Your expert guide to selecting the perfect impact crusher for mining, quarry, and recycling applications
Introduction
Are you searching for an impact crusher but unsure which model is right for your project? You’re not alone.
With 720+ monthly searches for impact crusher information, thousands of buyers face the same challenge every month.
After helping 500+ clients worldwide select the perfect crushing equipment, we’ve compiled this 8-step impact crusher buying guide to help you make an informed decision.
In this article, you’ll discover:
✅ How impact crusher works – working principle
✅ How to judge material hardness for impact crusher
✅ Capacity requirements – small, medium, large
✅ Mobile impact crusher vs stationary – which to choose?
Step 1: Understand Impact Crusher Working Principle
How Does an Impact Crusher Work?
The impact crusher uses high-speed rotating rotor to crush materials through impact force rather than compression.
Working Process:
1. Stone materials fall directly from feed inlet into large-capacity crushing chamber
2. High-speed rotating turntable accelerates materials with centrifugal force
3. Materials collide with stones flowing around turntable in umbrella pattern
4. High-speed collision and high-density crushing occurs
5. Materials create vortex motion between turntable and machine shell
6. Multiple mutual impacts, friction, and crushing
7. Discharged directly from bottom
8. Form closed-circuit multiple cycles
9. Screening equipment controls required particle size
Key Advantages of Impact Crusher
- ✅ High reduction ratio (up to 10:1)
- ✅ Excellent particle shape (cubical)
- ✅ Perfect for recycling applications
- ✅ Lower operating costs
- ✅ Easy maintenance
Step 2: Judge Material Hardness ⭐
Not all materials are suitable for impact crusher. Material hardness is the first factor to consider.
Suitable Materials for Impact Crusher
| Material Type | Hardness | Suitable for Impact Crusher? |
|---|---|---|
| Limestone | Medium (f=4-6) | ✅ Yes – Excellent |
| Construction Waste | Variable | ✅ Yes – Excellent |
| Bluestone | Medium (f=4-6) | ✅ Yes – Good |
| Coal | Soft (f<4) | ✅ Yes – Excellent |
| Concrete | Variable | ✅ Yes – Good (recycling) |
| Asphalt | Medium | ✅ Yes – Excellent |
| Granite | Hard (f>8) | ❌ No – Use Jaw + Cone |
| Basalt | Hard (f>8) | ❌ No – Use Jaw + Cone |
| River Pebbles | Hard (f>8) | ❌ No – Use Cone Crusher |
Check Mud Content and Moisture
Important Considerations:
□ Mud content should be <15%
□ Moisture content should be <15%
□ High mud/moisture may cause clogging
□ Solution: Pre-screening or choose larger crusher
Pro Tip: For medium-hard rock and soft rock, impact crusher is the best choice. For hard rock (granite, basalt), choose jaw + cone crusher combination.
Step 3: Check Material Size
The feed size must match your impact crusher specifications.
SUHMAN SF-380D Impact Crusher – Feed Specifications
| Specification | SF-380D |
|---|---|
| Max Feed Size | <700mm |
| Feed Inlet Size | 1380×970mm |
| Feeding Capacity | 230 TPH |
Feed Size Guidelines
| Material Size | Recommended Solution |
|---|---|
| <700mm | Direct feeding to impact crusher |
| 700-1000mm | Need primary jaw crusher first |
| >1000mm | Need heavy-duty jaw crusher + impact crusher |
Step 4: Determine Capacity Requirements
Choose impact crusher capacity based on your hourly production needs.
Capacity Classification
| Project Scale | Required Capacity | Recommended Model |
|---|---|---|
| Small | 50-150 TPH | SF-380D (150-180 TPH) |
| Medium | 150-200 TPH | SF-580D (180-230 TPH) |
| Large | 200+ TPH | Multiple crushers or heavy-duty model |
Calculate Your Needs
Daily Production Goal ÷ Working Hours = Required TPH
Example:
1500 tons/day ÷ 10 hours = 150 TPH required
Pro Tip: Add 20-30% buffer for peak demands
150 TPH × 1.25 = 187.5 TPH **impact crusher** recommended
Step 5: Define Finished Product Specifications
The impact crusher discharge size determines your final product quality.
SUHMAN Impact Crusher – Discharge Specifications
| Model | Discharge Size Range | Output Options |
|---|---|---|
| SF-380D | 0-10mm, 10-20mm, 20-40mm | 2-3 sizes simultaneously |
| SF-580D | 0-10mm, 10-20mm, 20-40mm | 2-4 sizes simultaneously |
Multi-Size Output Capability
SUHMAN integrated impact crusher can produce multiple sizes simultaneously:
✅ 2 sizes: 0-10mm + 10-20mm
✅ 3 sizes: 0-10mm + 10-20mm + 20-40mm
✅ 4 sizes: Customizable based on screening configuration
Ideal for:
- Road construction (multiple aggregate sizes)
- Concrete production (graded aggregates)
- Quarry operations (diverse product range)
Step 6: Crushing Line Configuration
Based on capacity and finished product requirements, determine if you need additional equipment.
Complete Crushing Line Options
| Configuration | Equipment Combination | Best For |
|---|---|---|
| Primary + Secondary | Jaw Crusher + Impact Crusher | Medium-hard rock |
| Three-Stage | Jaw + Impact Crusher + Screening | Quarry operations |
| Sand Making | Jaw + Cone + Vertical Shaft Impact Crusher SC-85D | Manufactured sand |
| Recycling Line | Mobile Impact Crusher + Screening | Construction waste |
When to Add Additional Equipment
□ Need sand production? → Add **vertical shaft impact crusher SC-85D**
□ Hard rock secondary crushing? → Add cone crusher
□ Multiple product sizes? → Add screening plant
□ High mud content? → Add washing system
Step 7: Choose Mobile vs Stationary Impact Crusher
This is one of the most important decisions when buying impact crusher for sale.
Mobile Impact Crusher
Search Volume: 260/month | KD: 9
Best for: Short-term projects, multiple job sites, recycling
Advantages:
✅ Easy relocation between sites
✅ No foundation required
✅ Quick setup (2-4 hours)
✅ All-terrain capability (tracked)
✅ Lower transportation costs

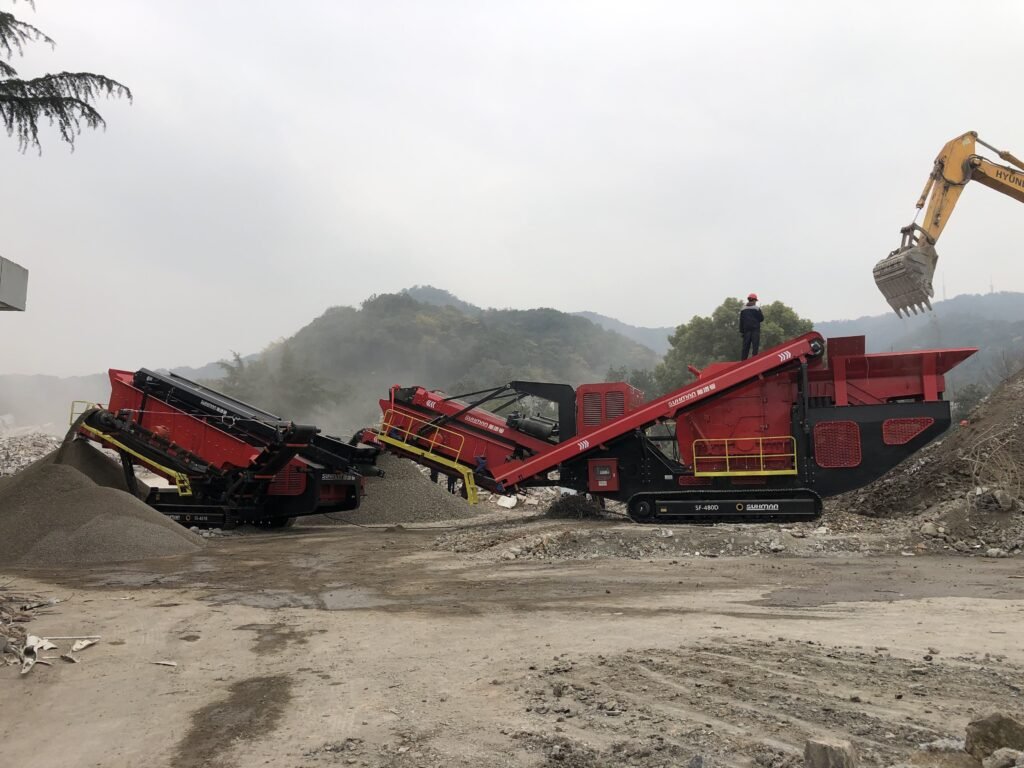

SUHMAN Mobile Impact Crushers:
- SF-380D: 150-180 TPH
- SF-580D: 180-230 TPH
Stationary/Modular Impact Crusher
Search Volume: 70/month | KD: 0 ⭐
Best for: Long-term projects, fixed quarry operations
Advantages:
✅ Lower initial cost (no chassis)
✅ Higher stability
✅ Easier maintenance access
✅ Longer service life (15+ years)
✅ Better for continuous operation
Decision Matrix
| Factor | Choose Mobile | Choose Stationary |
|---|---|---|
| Project Duration | Short-term (<2 years) | Long-term (5+ years) |
| Site Changes | Frequent relocation | Fixed location |
| Budget | Higher initial | Lower initial |
| Setup Time | Quick (2-4 hours) | Longer (1-2 weeks) |
| Resale Value | Higher | Lower |
Step 8: Summary – Quick Decision Guide
Quick Selection Checklist
□ Material: Medium-hard rock or soft rock? → **Impact crusher** ✅
□ Material: Hard rock (granite, basalt)? → Jaw + Cone ❌
□ Feed Size: <700mm? → Direct to **impact crusher** ✅
□ Capacity: 150-230 TPH? → SF-380D or SF-580D ✅
□ Multiple Sizes Needed? → Integrated screening ✅
□ Mobile Needed? → **Mobile impact crusher** ✅
□ Fixed Operation? → Stationary/modular ✅
Final Recommendation
For medium-hard rock and soft rock, impact crusher is the best choice because:
✅ Lower operating cost
✅ Excellent particle shape
✅ High reduction ratio
✅ Perfect for recycling
✅ Easy maintenance
SUHMAN offers:
Quick Selection Checklist
□ Material: Medium-hard rock or soft rock? → **Impact crusher** ✅
□ Material: Hard rock (granite, basalt)? → Jaw + Cone ❌
□ Feed Size: <700mm? → Direct to **impact crusher** ✅
□ Capacity: 150-230 TPH? → SF-380D or SF-580D ✅
□ Multiple Sizes Needed? → Integrated screening ✅
□ Mobile Needed? → **Mobile impact crusher** ✅
□ Fixed Operation? → Stationary/modular ✅
Final Recommendation
For medium-hard rock and soft rock, impact crusher is the best choice because:
✅ Lower operating cost
✅ Excellent particle shape
✅ High reduction ratio
✅ Perfect for recycling
✅ Easy maintenance
SUHMAN offers:
- 15+ years impact crusher manufacturer experience
- 500+ projects worldwide
- Factory direct prices (save 20-30%)
- 2-year warranty
- 24/7 technical support
- Impact crusher parts with 48-hour shipping
Get Your Free Impact Crusher Quote Today! ⭐
Ready to find the perfect impact crusher for your project?
Contact SUHMAN for:
📋 Free Site Assessment
💰 Detailed Cost Analysis
📐 Custom Plant Design
🔧 Installation & Training Support
Contact Information
| Method | Details |
|---|---|
| ahsuhman@163.com | |
| +86-13856971828 | |
| 🌐 Website | https://ahsuhman.com/ |
| ⏰ Response Time | Within 24 Hours |
Limited Time Offer
Order before March 31, 2026 and receive:
🎁 Free Wear Parts Kit ($8,000 value)
🎁 Free Installation Support
🎁 Extended Warranty (2 years → 3 years)
Get Free Impact Crusher Quote Now!
Article Summary
Key Takeaways:
✅ Impact crusher best for medium-hard and soft rock
✅ Check material hardness before choosing
✅ Match feed size to impact crusher specifications
✅ Mobile impact crusher for multiple job sites
✅ Factory direct purchase saves 20-30%
✅ Impact crusher parts available with fast shipping
Ready to start your project?
