Working Principle

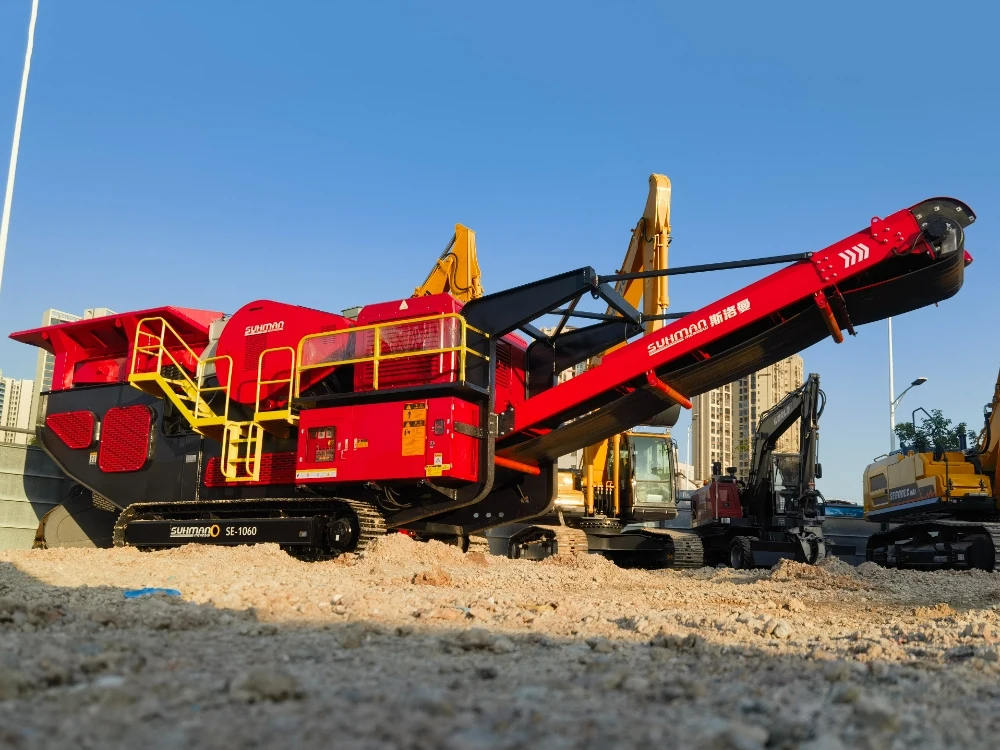

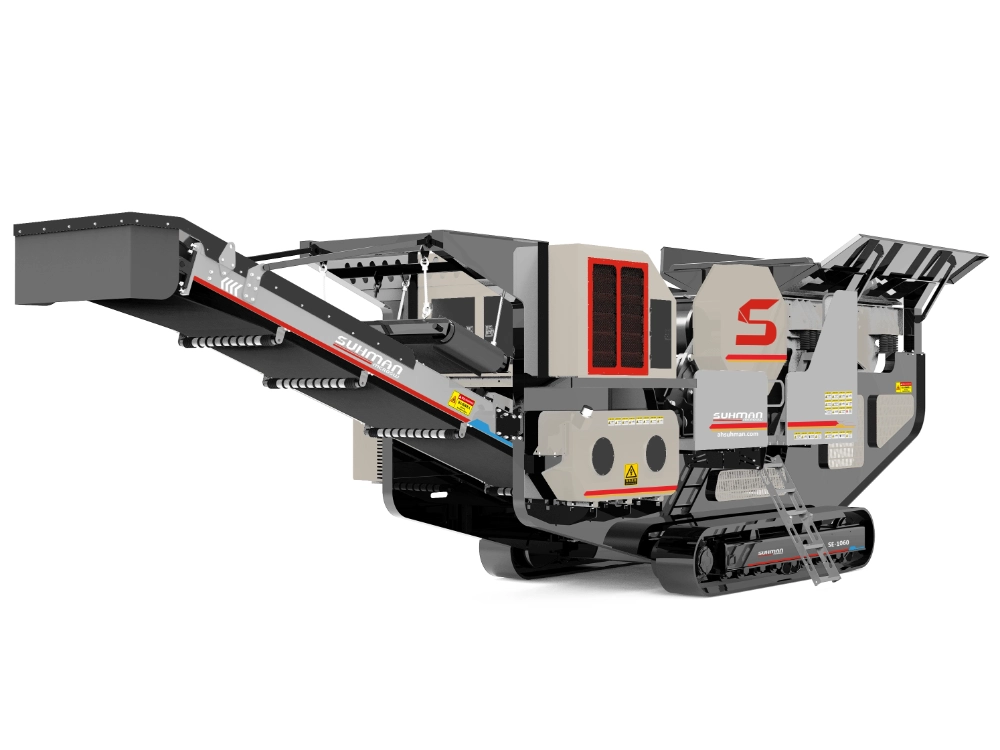

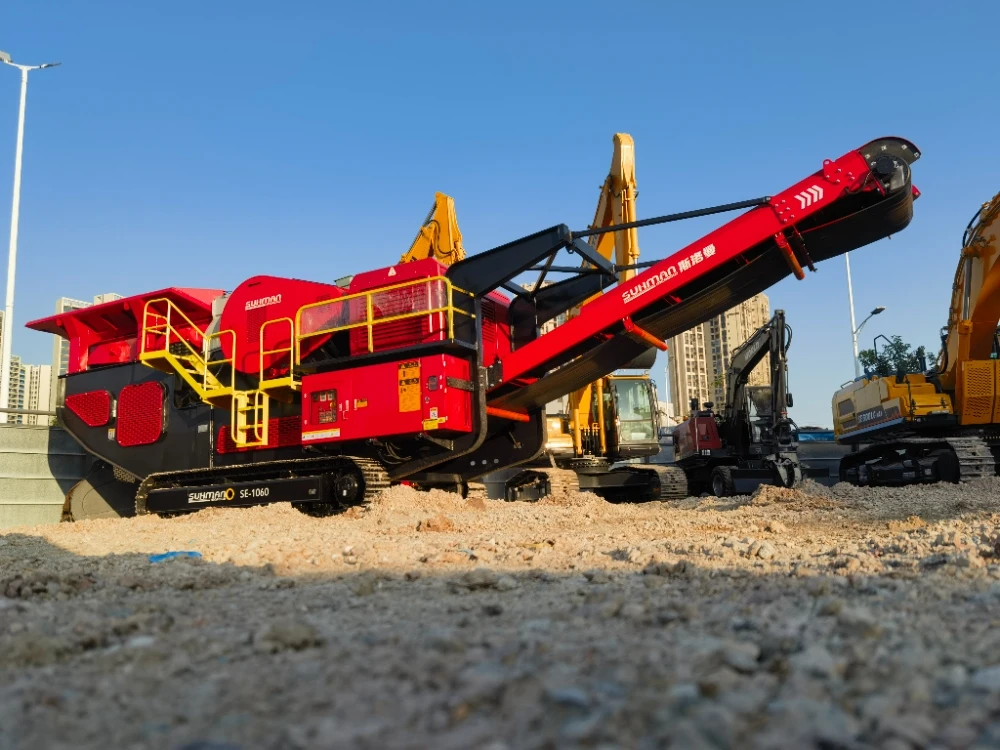

Suhman SE-1060 mobile jaw crusher by Suhman is designed with a robust jaw crushing system mounted on a tracked chassis. It operates based on a mechanical compression principle: material enters the crushing chamber, where a fixed jaw and a moving jaw form a V-shaped cavity. The moving jaw periodically presses against the fixed jaw, crushing the material through repeated compression and shearing. This motion is powered by a heavy-duty eccentric shaft, ensuring consistent performance and reliable throughput even under tough conditions.
The machine features hydraulic adjustment for setting the discharge size, allowing operators to fine-tune product granularity according to specific requirements. A vibration-resistant feeder system ensures stable material feeding, while a wide discharge belt enables smooth output of crushed materials.
Application

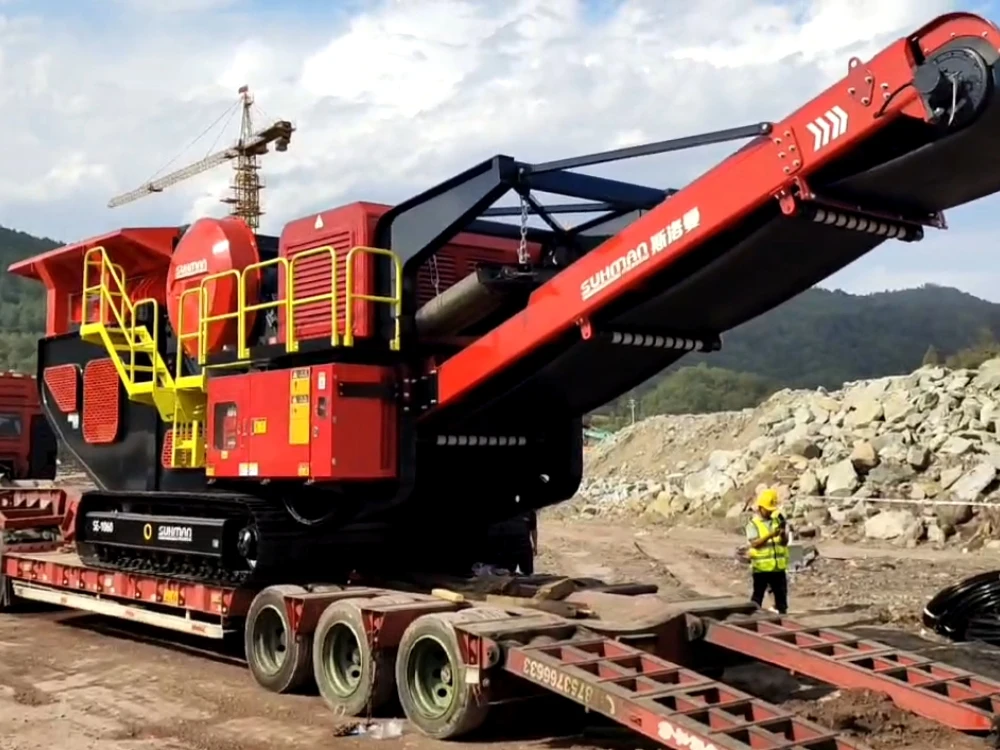

SE-1060 tracked jaw crusher is engineered for primary crushing in demanding applications. It performs effectively across a wide range of materials including soft rock, construction waste, concrete blocks, and hard rock. Its tracked design allows it to navigate complex terrain, making it especially suitable for mobile operations in mining sites, urban demolition zones, road and bridge construction, and aggregate production yards.
Thanks to its mobility and quick setup capabilities, the SE-1060 jaw crusher reduces the need for fixed infrastructure, shortens project timelines, and lowers transportation costs of raw materials. Its compact design and high crushing capacity also make it ideal for use in space-constrained environments without compromising performance.
Video Presentation
Product Parameter
| Project | Name | SE-1060-DP |
| Feeding equipment | Feeding capacity (t/h) | 200-250 |
| Maximum feeding size (mm) | 700 | |
| Feeding height (mm) | 3600 | |
| Hopper volume (m³) | 3 | |
| Vibrating Feeder | Length x Width (mm) | 4000×1100 |
| Motor model | PJMV-65-6 | |
| Power (KW) | 4.5×2 | |
| crusher | Jaw crusher | 1060 |
| Crusher feed inlet (length x width) (mm) | 1060×750 | |
| Maximum feed particle size (mm) | 700 | |
| Crusher weight (t) | 18 | |
| Adjustment range of discharge port | 80-250 | |
| Main engine bearing model | 23060 | |
| Main breaking motor model | YE3-315L-6 | |
| Crusher power (KW) | 110 | |
| Main belt | Stacking height (mm) | 3000 |
| Width (mm) | 9500×1350 | |
| Electric roller model | M1-270 | |
| Power (KW) | 9.2×2 | |
| Tail belt | Stacking height (mm) | 2350 |
| Width (mm) | 880 | |
| Electric roller model | M1-270 | |
| Power (KW) | 5.5 | |
| De-ironing separator | Length x Width (mm) | 2100×910 |
| Power (KW) | 3 | |
| Complete machine | Engine power (KW) | 200 |
| Generator power (KW) | 200 | |
| Track chassis model | LDZ55-3657 | |
| Whole machine weight (t) | 46t | |
| Processing capacity of crusher (t/h) | 200-250 | |
| Total power of crushing operation (KW) | 139.4 | |
| Working dimensions (length, width, height/mm) | 15500×4150×3900 | |
| Transportation dimensions (length, width, height/mm) | 15500×3700×3900 |
More Details
1. Single Power Version & Dual Power Version
SE-1060 Mobile Jaw Crusher is available in two versions: Single Power and Dual Power.
- Single Power Version: Requires an external power supply when crushing stones, suitable for job sites with stable electricity.
- Dual Power Version: More versatile. When a stable power supply is not available, the machine can operate directly with diesel.
2. Engine
- Standard Configuration: Equipped with a branded engine meeting China National III emission standard.
- Optional Upgrades: Can be upgraded to China Stage IV, EPA Tier 4, or Euro V engines to comply with local environmental regulations.
3. Delivery Terms
| Item | Terms |
|---|---|
| Delivery Time | Approx. 20–25 working days after down payment |
| Warranty | 12 months |
| Spare Parts | A full set of wear parts will be provided with the machine, and long-term supply is guaranteed |
| Service & Support |
|
FAQ
Q1: What is the production capacity of the SE-1060 mobile jaw crusher?
A1: The SE-1060 mobile jaw crusher has a standard capacity of 200-250 TPH. The actual throughput depends on the hardness of the material, feed size, and the size of the final aggregate you require.
Q2: Can this jaw crusher handle hard rocks like granite and basalt?
A2: Yes. The SE-1060 is engineered with a heavy-duty eccentric shaft and high-manganese steel jaw plates, making it ideal for the primary crushing of hard rocks such as granite, basalt, andesite, and iron ore.
Q3: Does the SE-1060 require an external power source?
A3: We offer two versions. The single-power version requires an external grid connection. The dual-power version comes with a built-in diesel generator, allowing it to operate independently in remote mining sites without stable electricity.
Q4: What is the maximum feed size for the SE-1060?
A4: The SE-1060 can accept raw materials up to 700mm in size, making it highly effective for processing large boulders directly from the quarry.
