Jaw Crusher Maintenance Guide 2026: Maximize Uptime & Reduce Costs
Complete maintenance checklist for mobile jaw crusher operators in Southeast Asia
Introduction
A well-maintained jaw crusher can operate for 10-15 years with minimal downtime. But neglect maintenance, and you could face:
❌ 30-50% reduction in production capacity
❌ Unexpected breakdowns costing $5,000-$20,000 per day
❌ Premature wear requiring early replacement
❌ Safety hazards for your operators
In Southeast Asia’s hot and humid climate, proper jaw crusher maintenance is even more critical. Dust, moisture, and continuous operation can accelerate wear and cause unexpected failures.
In this comprehensive guide, we’ll share the exact jaw crusher maintenance checklist used by 500+ successful quarries and mining operations worldwide.
You’ll learn:
✅ Daily, weekly, and monthly maintenance tasks
✅ Common jaw crusher problems and troubleshooting
✅ How to extend wear part lifespan by 40-60%
✅ Mobile jaw crusher maintenance best practices
✅ When to replace vs. repair components
Let’s get started.
Why Jaw Crusher Maintenance Matters
The Real Cost of Poor Maintenance
| Issue | Downtime | Cost Impact |
|---|---|---|
| Unexpected Breakdown | 2-5 days | $10,000 – $50,000 |
| Premature Wear Parts | N/A | +40-60% parts cost |
| Reduced Capacity | Ongoing | -20-30% revenue |
| Safety Incidents | Variable | $50,000 – $500,000+ |
Preventive maintenance costs 5-10% of reactive maintenance.
Jaw Crusher Maintenance Schedule Overview
Maintenance Frequency Chart
| Task | Daily | Weekly | Monthly | Quarterly | Annually |
|---|---|---|---|---|---|
| Visual Inspection | ✅ | ✅ | ✅ | ✅ | ✅ |
| Lubrication Check | ✅ | ✅ | ✅ | ✅ | – |
| Wear Parts Inspection | – | ✅ | ✅ | ✅ | – |
| Belt Tension Check | – | ✅ | ✅ | – | – |
| Oil Change | – | – | – | ✅ | ✅ |
| Bearing Inspection | – | – | ✅ | ✅ | ✅ |
| Electrical System | – | – | ✅ | ✅ | ✅ |
| Complete Overhaul | – | – | – | – | ✅ |
Daily Jaw Crusher Maintenance Checklist ⭐⭐⭐
Time Required: 15-20 minutes
Before Starting Operations
□ Visual inspection of crusher and surrounding area
□ Check for loose bolts, nuts, and fasteners
□ Inspect jaw plates for wear or damage
□ Verify all safety guards are in place
□ Check belt tension and alignment
□ Examine hydraulic system for leaks
□ Ensure proper lubrication levels
□ Clear any material buildup in crushing chamber
During Operations
□ Monitor crusher amperage/load
□ Listen for unusual noises or vibrations
□ Check discharge material size consistency
□ Monitor oil temperature (should be 45-55°C)
□ Watch for excessive dust or smoke
□ Verify feed rate is within specifications
After Operations
□ Clean crushing chamber thoroughly
□ Remove accumulated material from frames
□ Check and record operating hours
□ Document any issues or abnormalities
□ Secure all access doors and covers
Weekly Maintenance Checklist ⭐⭐
Time Required: 1-2 hours
Mechanical Inspection
□ Inspect jaw plates and measure wear
□ Check toggle plate condition
□ Examine cheek plates for wear
□ Verify flywheel key integrity
□ Inspect pitman and bearings
□ Check all bolts for proper torque
□ Examine conveyor belts for wear/damage
Lubrication System
□ Check grease levels in all bearings
□ Inspect grease lines for blockages
□ Verify automatic lubrication system function
□ Look for grease leaks around seals
□ Clean grease fittings before lubricating
Electrical System
□ Inspect motor connections
□ Check control panel for loose wires
□ Test emergency stop functions
□ Verify all safety switches operate correctly
□ Clean electrical components of dust
Monthly Maintenance Checklist ⭐⭐
Time Required: 4-6 hours
Comprehensive Inspection
□ Measure closed-side setting (CSS)
□ Check crusher discharge opening
□ Inspect toggle seat and tension rod
□ Examine pitman bearing clearance
□ Check flywheel for cracks or damage
□ Inspect frame for stress cracks
□ Verify foundation bolts are secure
Lubrication Service
□ Change crusher bearing grease (if required)
□ Flush and replace hydraulic oil (if required)
□ Clean lubrication system filters
□ Inspect oil cooler and clean if needed
□ Check oil analysis results (if available)
Wear Parts Assessment
□ Measure jaw plate wear profile
□ Calculate remaining wear part life
□ Order replacement parts if needed
□ Rotate jaw plates (if reversible design)
□ Document wear patterns for optimization
Quarterly Maintenance Checklist ⭐
Time Required: 8-12 hours
Major Component Inspection
□ Remove and inspect bearings
□ Check eccentric shaft for wear
□ Inspect pitman for cracks or deformation
□ Examine toggle plate and seats
□ Check all bushings and seals
□ Inspect pulleys and sheaves
□ Verify motor alignment
System Overhaul
□ Complete oil change (all systems)
□ Replace all filters
□ Flush hydraulic system
□ Clean and inspect oil cooler
□ Test and calibrate sensors
□ Update maintenance records
Annual Maintenance Checklist ⭐
Time Required: 2-3 days
Complete Crusher Overhaul
□ Complete disassembly and inspection
□ Replace all wear components
□ Rebuild or replace bearings
□ Inspect and machine frame if needed
□ Replace all seals and gaskets
□ Repaint and protect from corrosion
□ Load test and commissioning
□ Update operation manuals
Jaw Crusher Lubrication Guide
Proper Lubrication is Critical
| Component | Lubricant Type | Frequency | Temperature Range |
|---|---|---|---|
| Main Bearings | Lithium Complex Grease | Daily check, weekly fill | -20°C to 80°C |
| Eccentric Shaft | EP Gear Oil ISO 220 | Quarterly change | -10°C to 90°C |
| Hydraulic System | AW Hydraulic Oil ISO 46 | Monthly check, annual change | 0°C to 70°C |
| Toggle Plate | Molybdenum Grease | Weekly | -20°C to 120°C |
Lubrication Best Practices
✅ Use manufacturer-recommended lubricants only
✅ Store lubricants in clean, dry environment
✅ Never mix different lubricant types
✅ Keep lubrication records for trend analysis
✅ Sample oil annually for laboratory analysis
Common Jaw Crusher Problems & Troubleshooting
Problem 1: Excessive Vibration
| Possible Cause | Solution |
|---|---|
| Uneven feed distribution | Adjust feeder settings |
| Worn or broken jaw plates | Replace jaw plates |
| Loose foundation bolts | Tighten to specified torque |
| Damaged flywheel | Inspect and replace if needed |
| Unbalanced load | Check feed size and rate |
Problem 2: Overheating Bearings
| Possible Cause | Solution |
|---|---|
| Insufficient lubrication | Add grease immediately |
| Contaminated lubricant | Flush and replace grease |
| Overloaded crusher | Reduce feed rate |
| Damaged bearing seals | Replace seals |
| Misalignment | Check and realign |
Problem 3: Reduced Capacity
| Possible Cause | Solution |
|---|---|
| Worn jaw plates | Replace or rotate plates |
| Incorrect CSS setting | Adjust closed-side setting |
| Feed material too large | Install pre-screening |
| Belt slippage | Adjust belt tension |
| Motor issues | Check electrical supply |
Problem 4: Unusual Noise
| Possible Cause | Solution |
|---|---|
| Foreign material in chamber | Stop and remove material |
| Loose components | Tighten all bolts |
| Worn toggle plate | Replace toggle plate |
| Bearing failure | Inspect and replace bearings |
| Insufficient lubrication | Lubricate immediately |

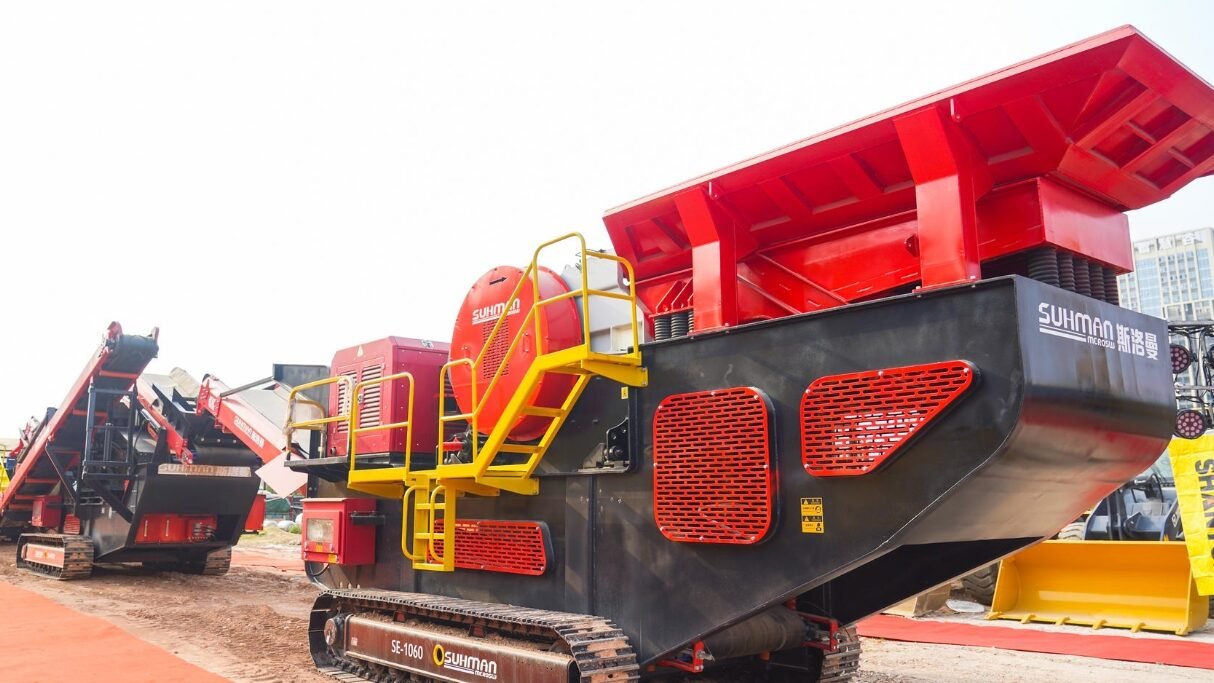

Mobile Jaw Crusher Maintenance Tips
Mobile crushers require additional attention due to frequent relocation.
Additional Weekly Tasks
□ Inspect track/wheel system
□ Check hydraulic hoses for wear
□ Verify conveyor belt tracking
□ Test all safety interlocks
□ Inspect fuel system (diesel units)
□ Check battery condition
□ Clean air filters
After Each Relocation
□ Level and stabilize unit
□ Recheck all bolt torques
□ Inspect hydraulic connections
□ Test all systems before operation
□ Document relocation condition
Extending Jaw Plate Life: Pro Tips
Jaw plates are your biggest wear cost. Follow these tips:
| Tip | Impact | Savings |
|---|---|---|
| Rotate plates regularly | Even wear distribution | +30-40% life |
| Use correct material grade | Match hardness to application | +20-30% life |
| Maintain proper feed | Reduce uneven wear | +25-35% life |
| Pre-screen fines | Reduce unnecessary wear | +15-25% life |
| Optimize CSS setting | Minimize wear zone | +20-30% life |
Jaw Plate Replacement Indicators
□ Output size exceeds specifications
□ Capacity drops by 20% or more
□ Visible cracks or breakage
□ Wear reaches 70% of original thickness
□ Uneven wear causing product inconsistency
Maintenance Record Keeping
Essential Records to Maintain
| Record Type | Frequency | Purpose |
|---|---|---|
| Daily Log | Every shift | Track operations and issues |
| Maintenance Log | Each service | Document all work performed |
| Wear Parts Log | Monthly | Track consumption and costs |
| Oil Analysis | Quarterly | Predict bearing failures |
| Downtime Log | As needed | Identify recurring issues |
Sample Maintenance Log Template
Date: _______________
Crusher Model: _______________
Operating Hours: _______________
Tasks Performed:
□ _______________
□ _______________
□ _______________
Parts Replaced:
□ _______________
□ _______________
Issues Found:
□ _______________
□ _______________
Technician: _______________
Next Service Due: _______________
Safety First: Maintenance Precautions
⚠️ Before Any Maintenance Work
□ Lock out/tag out all power sources
□ Release all hydraulic pressure
□ Allow crusher to cool completely
□ Wear appropriate PPE (helmet, gloves, safety glasses)
□ Use proper lifting equipment for heavy parts
□ Never work under suspended loads
□ Keep work area clean and organized
⚠️ Common Safety Mistakes to Avoid
❌ Working on crusher while running
❌ Skipping lockout/tagout procedures
❌ Using incorrect tools or equipment
❌ Ignoring warning signs or unusual noises
❌ Rushing maintenance tasks
❌ Not documenting maintenance work
When to Call Professional Support
Contact SUHMAN Technical Support When:
□ Unusual vibration persists after troubleshooting
□ Bearing temperature exceeds 70°C consistently
□ Frame cracks are discovered
□ Electrical system issues beyond basic troubleshooting
□ Major component replacement needed
□ Performance doesn't meet specifications after maintenance
SUHMAN Support: 24/7 technical support, 48-72 hours on-site service in Southeast Asia.
Maintenance Cost Optimization
Annual Maintenance Budget Guidelines
| Cost Category | % of Equipment Value | Example ($250K Crusher) |
|---|---|---|
| Preventive Maintenance | 2-3% | $5,000 – $7,500 |
| Wear Parts | 5-8% | $12,500 – $20,000 |
| Lubricants | 1-2% | $2,500 – $5,000 |
| Emergency Repairs | 2-5% | $5,000 – $12,500 |
| Total Annual | 10-18% | $25,000 – $45,000 |
Investing in preventive maintenance saves 3-5x in emergency repair costs.
Conclusion
Proper jaw crusher maintenance is the difference between profitable operations and costly downtime. By following this comprehensive guide:
Key Takeaways:
✅ Daily checks prevent 80% of unexpected failures
✅ Proper lubrication extends bearing life by 2-3x
✅ Regular wear inspection optimizes parts replacement timing
✅ Documentation enables predictive maintenance
✅ Professional support available when needed
Remember: The cost of maintenance is always less than the cost of downtime.
Get Free Maintenance Consultation
Need help optimizing your jaw crusher maintenance program?
Contact SUHMAN for:
📋 Free Maintenance Audit
🔧 Operator Training Programs
📦 Spare Parts Recommendations
📞 24/7 Technical Support
Contact Information
| Method | Details |
|---|---|
| ahsuhman@163.com | |
| 📱 WhatsApp/Tel | +86-13856971828 |
| 🌐 Website | https://ahsuhman.com;suhmanmobilecrusher.com |
| ⏰ Response Time | Within 24 Hours |
