Working Principle

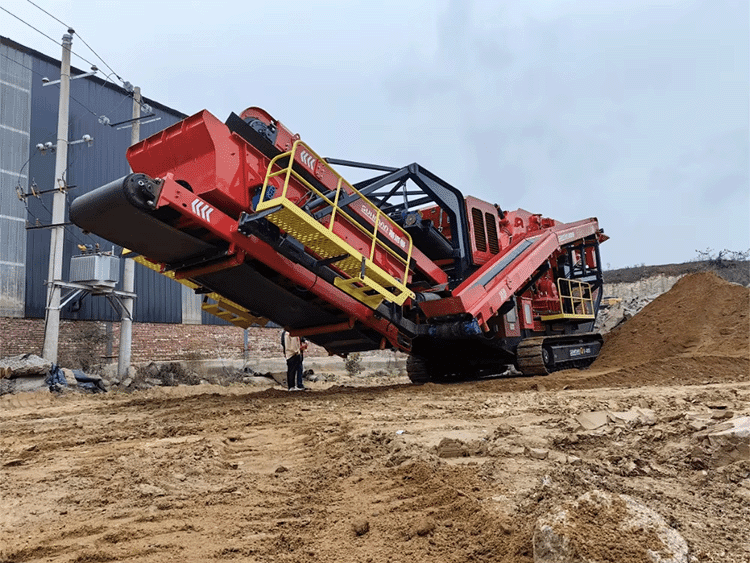

SF-380D Mobile Impact Crusher is a crawler-mounted mobile impact crusher designed for efficient on-site crushing. At its core is a high-performance impact crusher that operates based on the principle of high-speed rotor impact. Material enters the crushing chamber through a heavy-duty vibrating feeder, where a pre-screening system removes fine materials and impurities before they reach the main crusher, improving efficiency and reducing wear.
Once inside the chamber, the material is struck by the rapidly rotating rotor and repeatedly impacted against adjustable breaker plates. This process crushes the material into smaller particles, which are discharged through the outlet once they meet the required size. The compact design allows for all of this to occur within a single integrated unit, enabling fast deployment and reliable operation on site.
SF-380D Mobile Impact Crusher is equipped with an intelligent control system for real-time monitoring and safety management. It supports a dual-power system (diesel-electric hybrid), allowing for optimized fuel efficiency. The hydraulic-driven crawler undercarriage ensures excellent mobility and terrain adaptability, even on uneven or rugged job sites.
Application
SF-380D Mobile Impact Crusher is suitable for a wide range of medium-hard materials, making it ideal for handling construction and demolition debris such as concrete, asphalt, bricks, and limestone. Key application areas include:
-

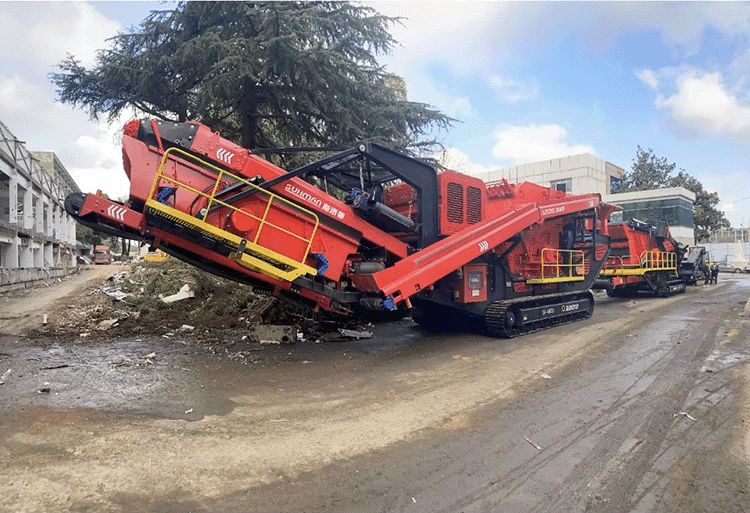

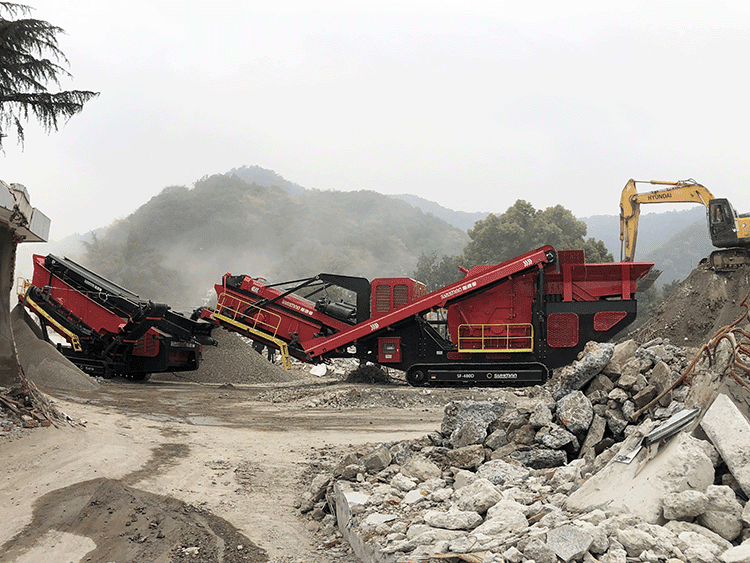

Urban Construction Waste Recycling
The unit efficiently processes reinforced concrete, bricks, and rubble generated from demolition projects, converting them into reusable aggregate for infrastructure works. -
Road Maintenance and Asphalt Recycling
It can crush asphalt pavement and old road materials, supporting material reuse and cost reduction on road projects. -
Auxiliary Crushing in Mining Sites
In quarries or mining operations that require temporary or mobile crushing capacity, the SF-380D serves as a versatile and efficient secondary crusher. -
Short-Term or Remote Construction Projects
For job sites with space constraints or limited project durations, the SF-380D offers fast setup and high mobility, providing an efficient solution for temporary crushing needs.
With its compact structure, flexible mobility, and user-friendly operation, the SF-380D can operate as a standalone unit or in combination with screening equipment. It adapts easily to various crushing demands and is an excellent choice for small to medium-sized recycling or construction projects.
Video Presentation
Product Parameter
| Project | Name | SF-380D-DP |
| Feed section | Feeding capacity (t/h) | 230 |
| Hopper volume (m³) | 5 | |
| Power (kw) | 4.5×2 | |
| Feeder size (length x width) (mm) | 3960×1280 | |
| Feeding height (mm) | 3850 | |
| Crusher | Crusher model | 1214 |
| Feed inlet size (length x width) (mm) | 1380×970 | |
| Maximum feed particle size (mm) | ＜700 | |
| Adjustment range of discharge port (mm) | 300-500\0-150 | |
| Crusher weight (t) | 18 | |
| Crusher power (kw) | 220 | |
| Main belt | Length x Width (mm) | 11000×1600 |
| Unloading height (mm) | 3250 | |
| Power (kw) | 9.5×2 | |
| Belt for finished materials | Length x Width (mm) | 5200×1350 |
| Unloading height (mm) | 2860 | |
| Power (kw) | 7.2×2 | |
| Return material hanging sieve | Length x Width (mm) | 4600×2160 |
| Power (kw) | 3.7×2 | |
| Number of sieve layers (layers) | 1 | |
| Screen size (mm) | 4000×1540 | |
| Transition belt | Length x Width (mm) | 1750×970 |
| Power (kw) | 3 | |
| Side conveyor belt | Length x Width (mm) | / |
| Power (kw) | / | |
| Return conveyer belt | Length x Width (mm) | 7000×770 |
| Power (kw) | 5.5 | |
| De-ironing separator | Length x Width (mm) | 2100×910 |
| Power (kw) | 3 | |
| Complete machine | Track chassis model | LDZ55-3657 |
| Engine power (kw) | 400 | |
| Generator power (kw) | 400 | |
| Whole machine weight (t) | 53 | |
| Machine processing capacity (t/h) | 150-180 | |
| Total power of crushing work (kw) | 281.3 | |
| Working dimensions (length, width, height/mm) | 17652×3500×4000 | |
| Transportation dimensions (length, width, height/mm) | 17652×3500×4000 |
More Details
1. Single Power Version & Dual Power Version
SF-380D Mobile Impact Crusher is available in two versions: Single Power and Dual Power.
- Single Power Version: Requires an external power supply when crushing stones, suitable for job sites with stable electricity.
- Dual Power Version: More versatile. When a stable power supply is not available, the machine can operate directly with diesel.
2. Engine
- Standard Configuration: Equipped with a branded engine meeting China National III emission standard.
- Optional Upgrades: Can be upgraded to China Stage IV, EPA Tier 4, or Euro V engines to comply with local environmental regulations.
3. Delivery Terms
| Item | Terms |
|---|---|
| Delivery Time | Approx. 20–25 working days after down payment |
| Warranty | 12 months |
| Spare Parts | A full set of wear parts will be provided with the machine, and long-term supply is guaranteed |
