Working Principle

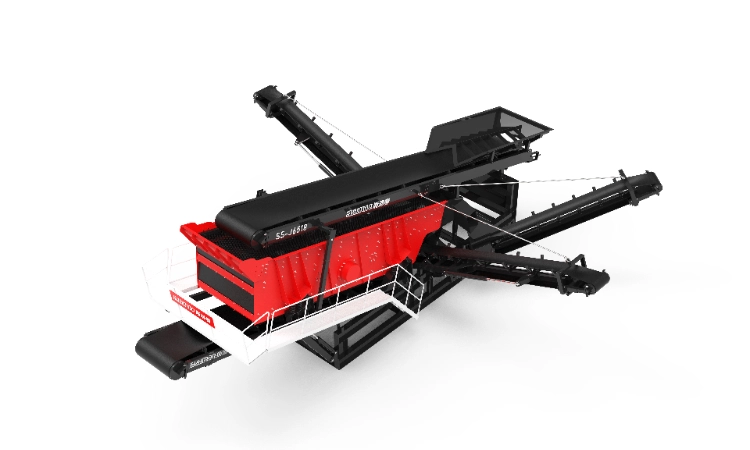

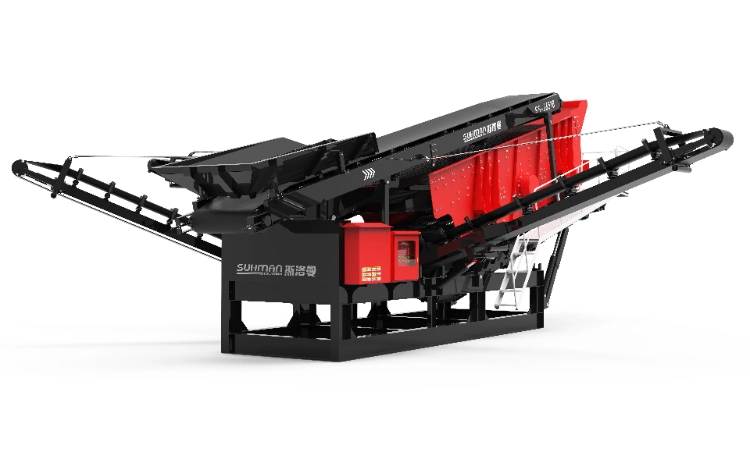

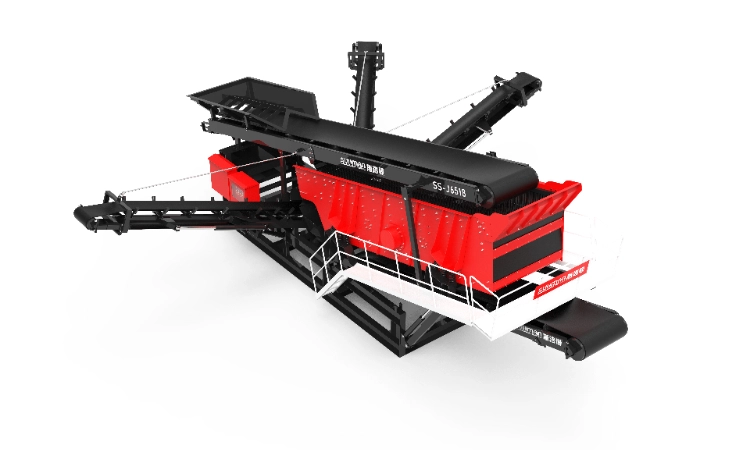

SS‑J7018 Modular Inclined Vibrating Screening Plant is equipped with a three-deck inclined vibrating screen. Material is evenly fed onto the screen via a conveyor belt, and the screen vibrates under the action of excitation devices to separate particles by size. Fine particles pass through the screen mesh and are collected below, while coarser particles slide down each deck. Each screen deck corresponds to a different size range, and multiple discharge conveyors transport the sorted material to stockpiles. The system can simultaneously produce four different sizes of aggregate. Its modular structure allows for easy assembly and maintenance, making it suitable for medium to large fixed screening projects.
Application
SS‑J7018 Modular Screening Plant is suitable for operations that require precise aggregate separation at medium to large production scales. Typical applications include:
-
Mining and Quarrying: Ideal for classifying crushed materials in metal and non-metal mining operations to improve downstream processing efficiency.
-
Aggregate Production: Widely used in sand and gravel plants, cement plants, and concrete batching stations for screening manufactured sand, gravel, and crushed stone.
-
Construction Waste Recycling: Effective for separating reusable aggregates such as crushed concrete and bricks in recycling facilities.
-
Industrial Raw Material Sorting: Applicable to pre-screening and final screening of raw materials like coal, non-ferrous ores, and refractory materials.
-
Modular Crushing Systems: Can be integrated as a screening module within a larger custom-configured stationary crushing and screening line.
The SS‑J7018 offers high screening efficiency, stable operation, and easy integration into fixed-site processing systems, making it a reliable choice for demanding material classification tasks.
Video Presentation
Product Parameter
| Serial number | Project | Description | SS-J7018 |
| 1 | Feeding equipment | Hopper volume（m³） | 2 |
| 2 | Feed height（mm） | 2500 | |
| 3 | Maximum feed size（mm） | 100 | |
| 4 | Size of feeder (length x width)（mm） | 2000×1500 | |
| 5 | Feed capacity （t/h） | 150-300 | |
| 6 | Power of Feeder | 11 | |
| 7 | Inclined Screener | Screen size (length x width)（mm） | 7000×1800 |
| 8 | Maximum feeding granularity（mm） | 100 | |
| 9 | Processing capacity（t/h） | 250-300 | |
| 10 | Power（kw） | 7.5kw×2 | |
| 11 | The number of screen layer (layer) | 3 | |
| 12 | Feeding belt conveyor | Width/length （mm） | 1000×20150 |
| 13 | Power（kw） | 11 | |
| 14 | Side belt conveyor 1 | Width/length （mm） | 550×14300 |
| 15 | Discharge height（mm） | 2800 | |
| 16 | Power（kw） | 5.5 | |
| 17 | Side belt conveyor 2 | Width/length （mm） | 550×14300 |
| 18 | Discharge height（mm） | 2800 | |
| 19 | Power（kw） | 5.5 | |
| 20 | Side belt conveyor 3 | Width/length （mm） | 550×9800 |
| 21 | Discharge height（mm） | 2600 | |
| 22 | Power（kw） | 5.5 | |
| 23 | Belt conveyor under screen | Width/length （mm） | 1000×14500 |
| 24 | Discharge height（mm） | 3200 | |
| 25 | Power（kw） | 7.5 |
More Details
1. Single Power Version & Dual Power Version
SS-J7018 Modular Screening Plant is available in two versions: Single Power and Dual Power.
- Single Power Version: Requires an external power supply when crushing stones, suitable for job sites with stable electricity.
- Dual Power Version: More versatile. When a stable power supply is not available, the machine can operate directly with diesel.
2. Engine
- Standard Configuration: Equipped with a branded engine meeting China National III emission standard.
- Optional Upgrades: Can be upgraded to China Stage IV, EPA Tier 4, or Euro V engines to comply with local environmental regulations.
3. Delivery Terms
| Item | Terms |
|---|---|
| Delivery Time | Approx. 20–25 working days after down payment |
| Warranty | 12 months |
| Spare Parts | A full set of wear parts will be provided with the machine, and long-term supply is guaranteed |
| Service & Support |
|
