Capacity: 80-300 tph
Inlet size: 650×1000 (mm)
Suitable Materials: hard rock (granite, basalt, andesite, river pebbles, iron ore, copper ore, etc.), soft rock (limestone, bluestone, dolomite, coal, etc.), and construction waste.
Customization & OEM: Available

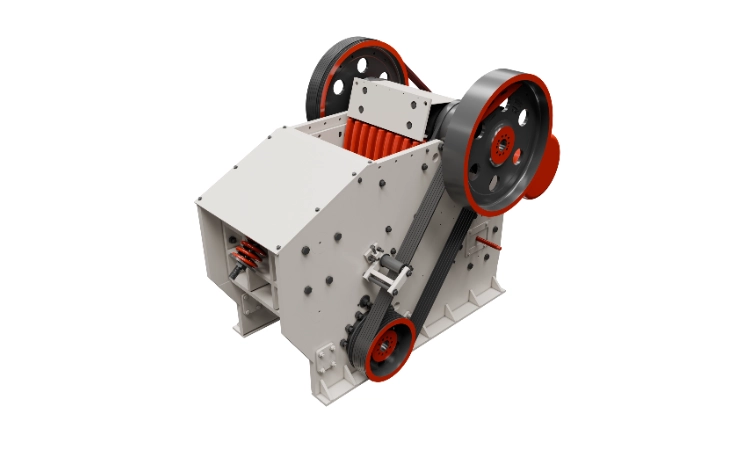

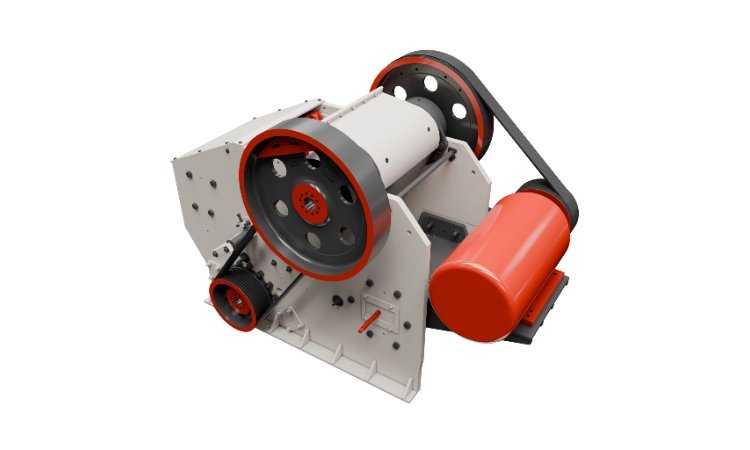

Suhman TZ‑6510 dual-core jaw crusher features a unique dual‑core design with two synchronized movable jaws arranged symmetrically in a V‑shaped crushing chamber. As the eccentric shaft rotates, both jaws move in unison—one at the feed side to grip and compress material during entry, and the other at the discharge side to crush material toward the outlet. This structure ensures continuous and thorough crushing throughout the chamber, extending the crushing stroke and increasing force at the discharge end—a key solution to structural limitations common in conventional jaw crushers.The V‑shape cavity, combined with perfectly matched jaw plates, allows effective size reduction of incoming rock between the two jaws. Power is transmitted via belts ensuring both moving jaws operate in precise sync, creating a high compression ratio and consistent output size .
Application
Thanks to its robust dual‑core structure, TZ‑6510 dual-core jaw crusher delivers significantly higher throughput—up to a 50% production increase compared to standard single-jaw crushers. It excels in primary crushing of a wide range of tough materials, including soft rock, concrete debris, and hard rock.
It is ideal for mining operations, quarry setups, infrastructure projects (roads, bridges, tunnels), and demolition recycling plants. Its reinforced jaw plates and reliable mechanical drive allow continuous, high-capacity crushing in demanding environments, while its modularity simplifies maintenance and jobsite deployment.
Capacity: 180-230 tph
Max. Feed Particle Size: ＜700 (mm)
Produces up to two different sizes of finished aggregates simultaneously
Suitable Materials: soft rock (limestone, bluestone, dolomite, coal, etc.), and construction waste.
Customization & OEM: Available
Capacity: 150-180 tph
Max. Feed Particle Size: 600 (mm)
Produces up to three different sizes of finished aggregates simultaneously
Suitable Materials: soft rock (limestone, bluestone, dolomite, coal, etc.), and construction waste.
Customization & OEM: Available
Capacity: 50-130 tph
Max. Feed Size: 500 (mm)
Suitable Materials: hard rock (granite, basalt, andesite, river pebbles, iron ore, copper ore, etc.), soft rock (limestone, bluestone, dolomite, coal, etc.), and construction waste.
Customization & OEM: Available
